Description

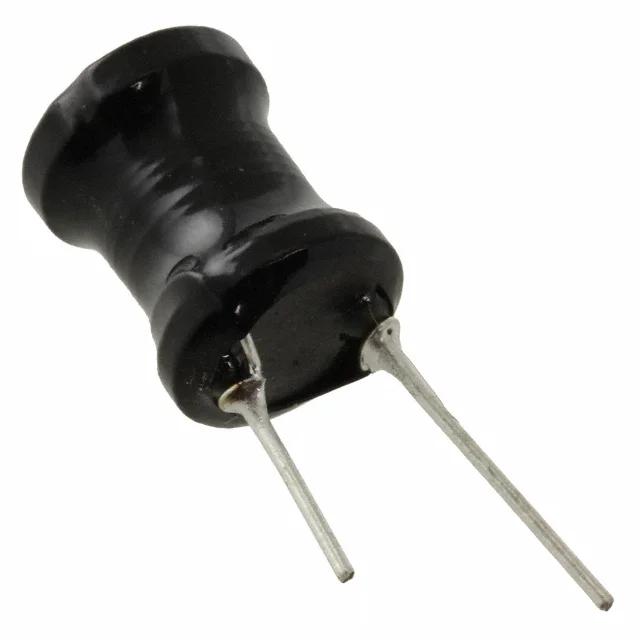

FIXED IND 6.8MH 220MA 8.4 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-06-682K.
AIUR-06-682K has an inductance value of 6.8 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-06-682K is rated for 220 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-06-682K lists a DC resistance of 8.4Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-06-682K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-06-682K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6.8 mH |
| Tolerance | ±10% |
| Current Rating | 220 mA |
| DC Resistance (DCR) | 8.4Ohm Max |
| Saturation Current | 340mA |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.500" Dia (12.70mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 6.8MH 220MA 8.4 OHM TH |
| Series | AIUR-06 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.710" (18.03mm) |
