Description

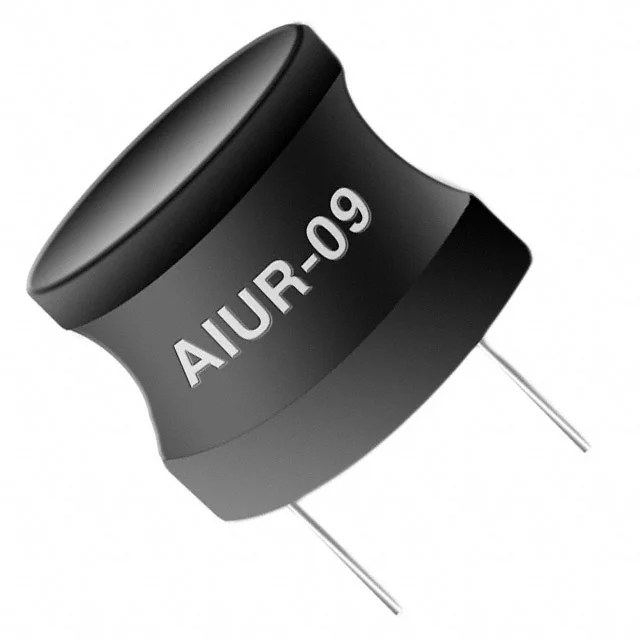

FIXED IND 1MH 360MA 3.3 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-09-102K.
AIUR-09-102K has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-09-102K is rated for 360 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-09-102K lists a DC resistance of 3.3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-09-102K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-09-102K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating | 360 mA |
| DC Resistance (DCR) | 3.3Ohm Max |
| Operating Temperature | -55°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 1MH 360MA 3.3 OHM TH |
| Series | AIUR-09 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder |
| Height - Seated (Max) | 0.394" Dia (10.00mm) |
| Features | 0.256" (6.50mm) |
