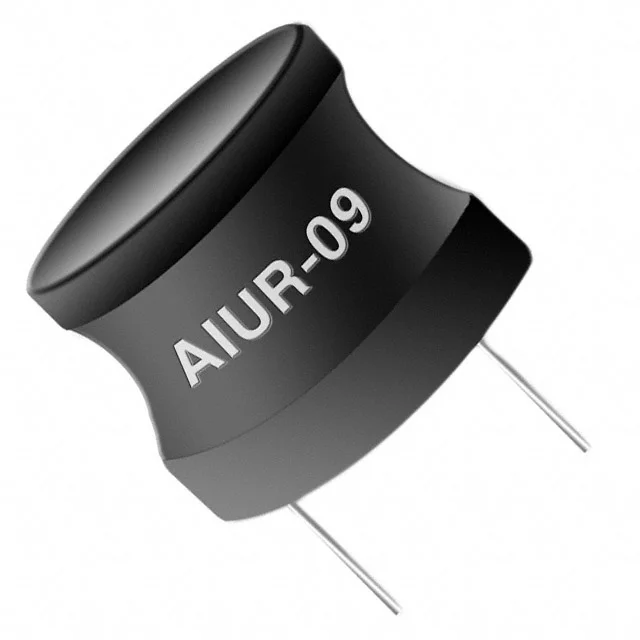

FIXED IND 15UH 2.9A 62 MOHM TH
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 2.9 A |
| DC Resistance (DCR) | 62mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 85°C |
| Dimensions | 0.394" Dia (10.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 15UH 2.9A 62 MOHM TH |
| Series | AIUR-09 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.256" (6.50mm) |
| features | - |
