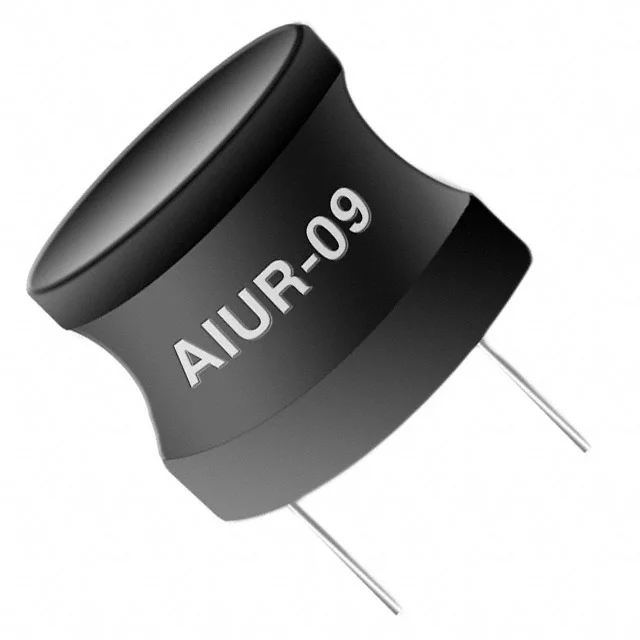

Description
FIXED IND 180UH 840MA 620 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-09-181K.
AIUR-09-181K has an inductance value of 180 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-09-181K is rated for 840 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-09-181K lists a DC resistance of 620mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-09-181K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-09-181K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 180 µH |
| Tolerance | ±10% |
| Current Rating | 840 mA |
| DC Resistance (DCR) | 620mOhm Max |
| Operating Temperature | -55°C ~ 85°C |
| Dimensions | 0.394" Dia (10.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 180UH 840MA 620 MOHM |
| Series | AIUR-09 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.256" (6.50mm) |
