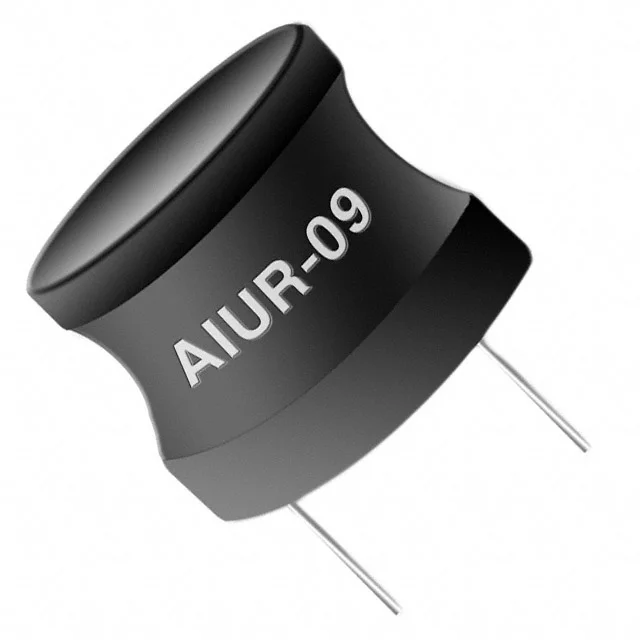

FIXED IND 560UH 490MA 1.9 OHM TH
| Inductance | 560 µH |
| Tolerance | ±10% |
| Current Rating | 490 mA |
| DC Resistance (DCR) | 1.9Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 85°C |
| Dimensions | - |
| Case / Size | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 560UH 490MA 1.9 OHM TH |
| Series | AIUR-09 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | - |
| supplierDevicePackage | Radial, Vertical Cylinder |
| heightMax | 0.394" Dia (10.00mm) |
| features | 0.256" (6.50mm) |
