Description

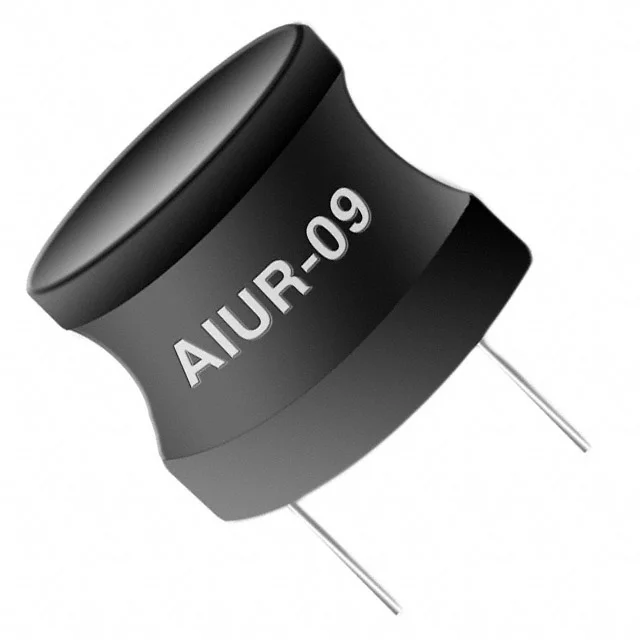

FIXED IND 82UH 1.3A 320 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-09-820M.
AIUR-09-820M has an inductance value of 82 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-09-820M is rated for 1.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-09-820M lists a DC resistance of 320mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-09-820M uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-09-820M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 82 µH |
| Tolerance | ±20% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 320mOhm Max |
| Operating Temperature | -55°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 82UH 1.3A 320 MOHM TH |
| Series | AIUR-09 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 2.52 MHz |
| Supplier Device Package | Radial, Vertical Cylinder |
| Height - Seated (Max) | 0.394" Dia (10.00mm) |
| Features | 0.256" (6.50mm) |
