Description

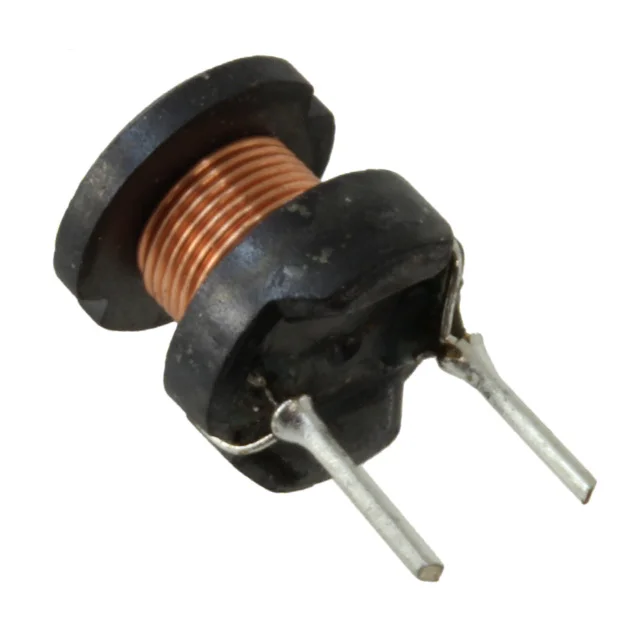

FIXED IND 100UH 770MA 440 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-10-101K.
AIUR-10-101K has an inductance value of 100 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-10-101K is rated for 770 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-10-101K lists a DC resistance of 440mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-10-101K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-10-101K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating | 770 mA |
| DC Resistance (DCR) | 440mOhm Max |
| Operating Temperature | -55°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 100UH 770MA 440 MOHM |
| Series | AIUR-10 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder (Open) |
| Height - Seated (Max) | 0.315" Dia (8.00mm) |
| Features | 0.315" (8.00mm) |
