Description

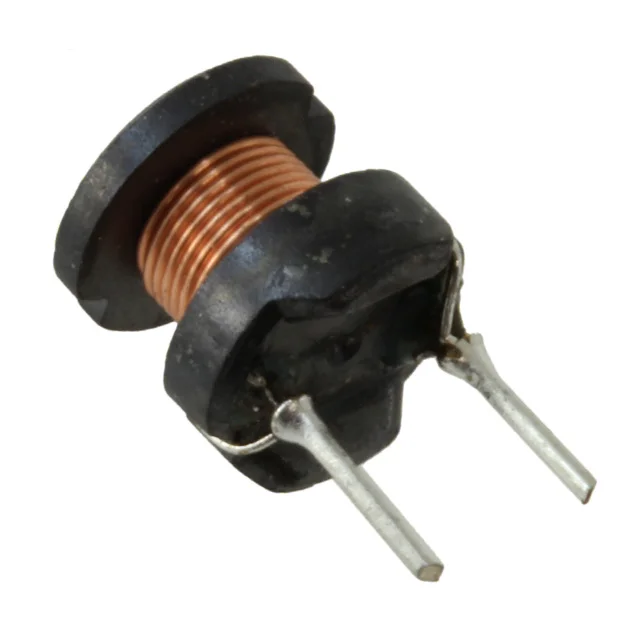

FIXED IND 220UH 450MA 850 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-10-221K.
AIUR-10-221K has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-10-221K is rated for 450 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-10-221K lists a DC resistance of 850mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-10-221K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-10-221K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating | 450 mA |
| DC Resistance (DCR) | 850mOhm Max |
| Operating Temperature | -55°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 220UH 450MA 850 MOHM |
| Series | AIUR-10 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder (Open) |
| Height - Seated (Max) | 0.315" Dia (8.00mm) |
| Features | 0.315" (8.00mm) |
