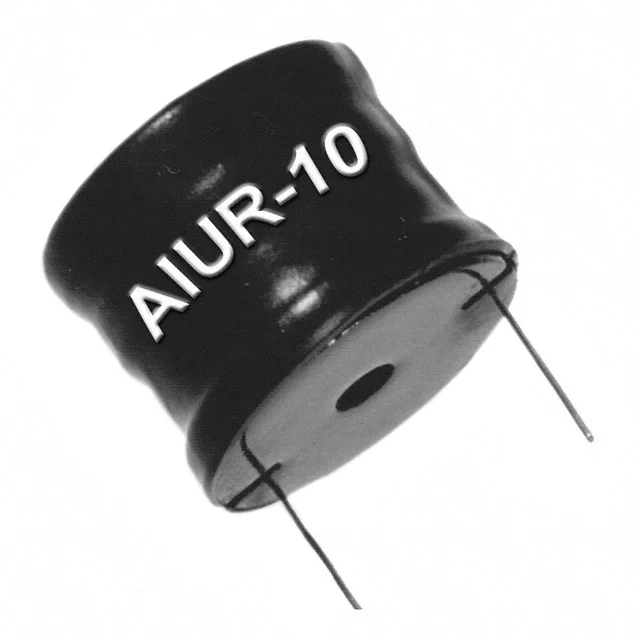

Description
FIXED IND 2.2MH 160MA 6.98 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-10-222K.
AIUR-10-222K has an inductance value of 2.2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-10-222K is rated for 160 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-10-222K lists a DC resistance of 6.98Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-10-222K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-10-222K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 mH |
| Tolerance | ±10% |
| Current Rating | 160 mA |
| DC Resistance (DCR) | 6.98Ohm Max |
| Operating Temperature | -55°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 2.2MH 160MA 6.98 OHM |
| Series | AIUR-10 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder (Open) |
| Height - Seated (Max) | 0.315" Dia (8.00mm) |
| Features | 0.315" (8.00mm) |
