Description

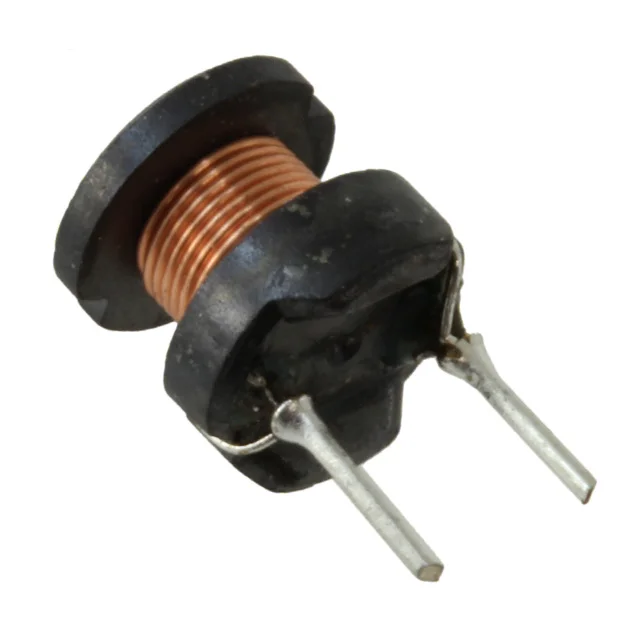

FIXED IND 270UH 410MA 990 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-10-271K.
AIUR-10-271K has an inductance value of 270 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-10-271K is rated for 410 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-10-271K lists a DC resistance of 990mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-10-271K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-10-271K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 270 µH |
| Tolerance | ±10% |
| Current Rating | 410 mA |
| DC Resistance (DCR) | 990mOhm Max |
| Operating Temperature | -55°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 270UH 410MA 990 MOHM |
| Series | AIUR-10 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder (Open) |
| Height - Seated (Max) | 0.315" Dia (8.00mm) |
| Features | 0.315" (8.00mm) |
