Description

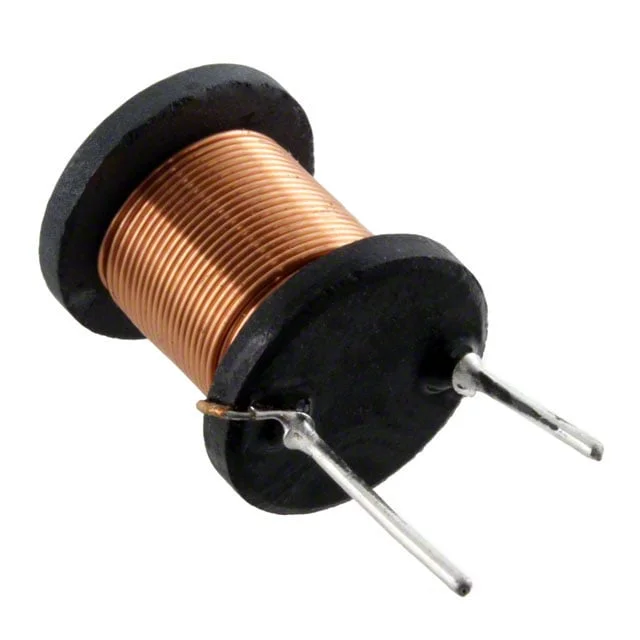

FIXED IND 120UH 3A 98 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-15-121K.
AIUR-15-121K has an inductance value of 120 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-15-121K is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-15-121K lists a DC resistance of 98mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-15-121K uses a package or case of Radial, Vertical Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-15-121K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 120 µH |
| Tolerance | ±10% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 98mOhm Max |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.709" Dia (18.00mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier | Abracon |
| Description | FIXED IND 120UH 3A 98 MOHM TH |
| Series | AIUR-15 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.787" (20.00mm) |
