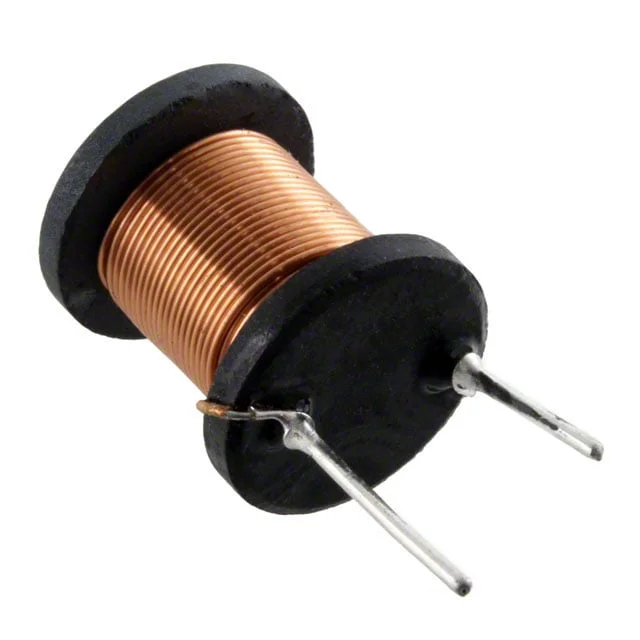

FIXED IND 470UH 1.5A 330 MOHM TH
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 330mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | - |
| Case / Size | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 470UH 1.5A 330 MOHM TH |
| Series | AIUR-15 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | - |
| supplierDevicePackage | Radial, Vertical Cylinder (Open) |
| heightMax | 0.709" Dia (18.00mm) |
| features | 0.787" (20.00mm) |
