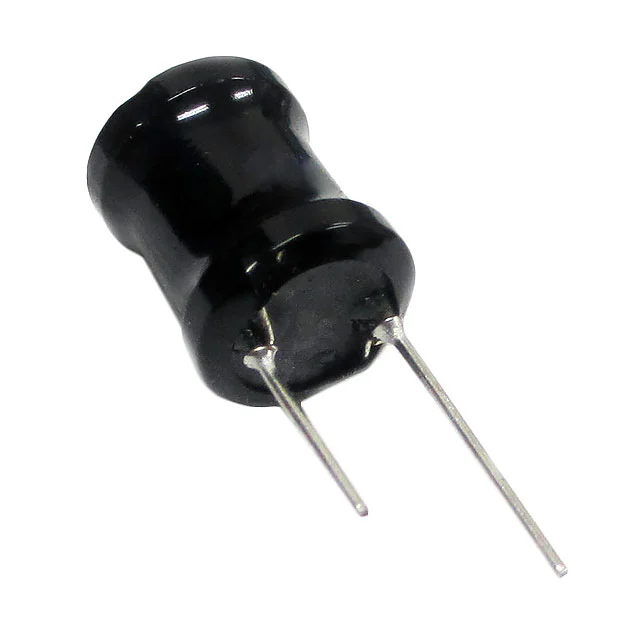

FIXED IND 33MH 30MA 100 OHM TH
| Inductance | 33 mH |
| Tolerance | ±10% |
| Current Rating | 30 mA |
| DC Resistance (DCR) | 100Ohm Max |
| saturationCurrent | 29mA |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.374" (9.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 33MH 30MA 100 OHM TH |
| Series | AIUR-16 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 10 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | 0.276" Dia (7.00mm) |
| heightMax | - |
| features | - |
