Description
FIXED IND 560UH 250MA 1.3 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-16-561K.
AIUR-16-561K has an inductance value of 560 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-16-561K is rated for 250 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-16-561K lists a DC resistance of 1.3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

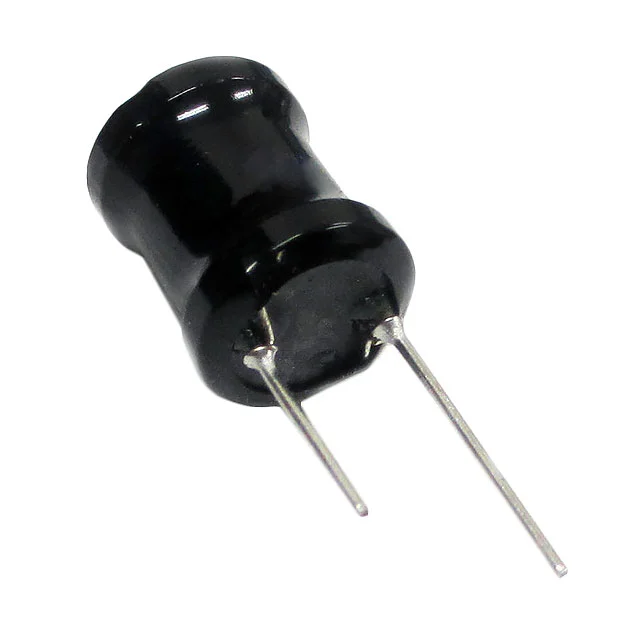

AIUR-16-561K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-16-561K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 560 µH |
| Tolerance | ±10% |
| Current Rating | 250 mA |
| DC Resistance (DCR) | 1.3Ohm Max |
| Saturation Current | 225mA |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.276" Dia (7.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 560UH 250MA 1.3 OHM TH |
| Series | AIUR-16 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.374" (9.50mm) |
