Description

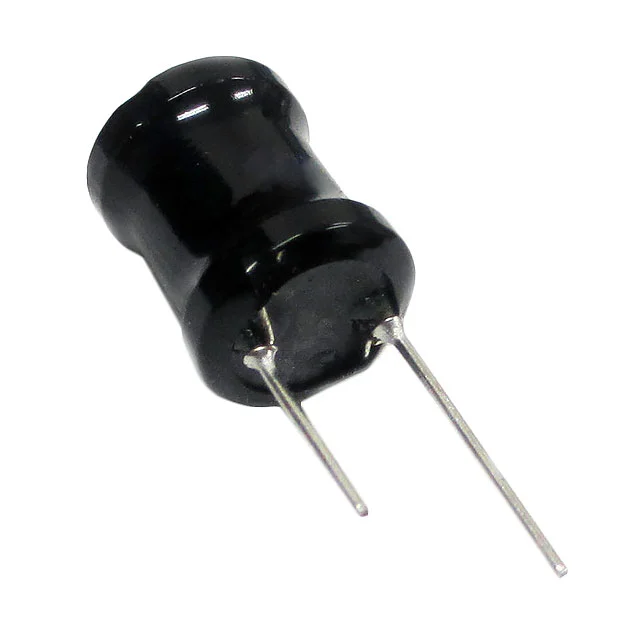

FIXED IND 820UH 190MA 2.1 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-16-821K.
AIUR-16-821K has an inductance value of 820 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-16-821K is rated for 190 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-16-821K lists a DC resistance of 2.1Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-16-821K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-16-821K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 820 µH |
| Tolerance | ±10% |
| Current Rating | 190 mA |
| DC Resistance (DCR) | 2.1Ohm Max |
| Saturation Current | 190mA |
| Operating Temperature | -25°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 820UH 190MA 2.1 OHM TH |
| Series | AIUR-16 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Supplier Device Package | Radial, Vertical Cylinder |
| Height - Seated (Max) | 0.276" Dia (7.00mm) |
| Features | 0.374" (9.50mm) |
