Description
FIXED IND 8.2MH 60MA 20 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-16-822K.
AIUR-16-822K has an inductance value of 8.2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-16-822K is rated for 60 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-16-822K lists a DC resistance of 20Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

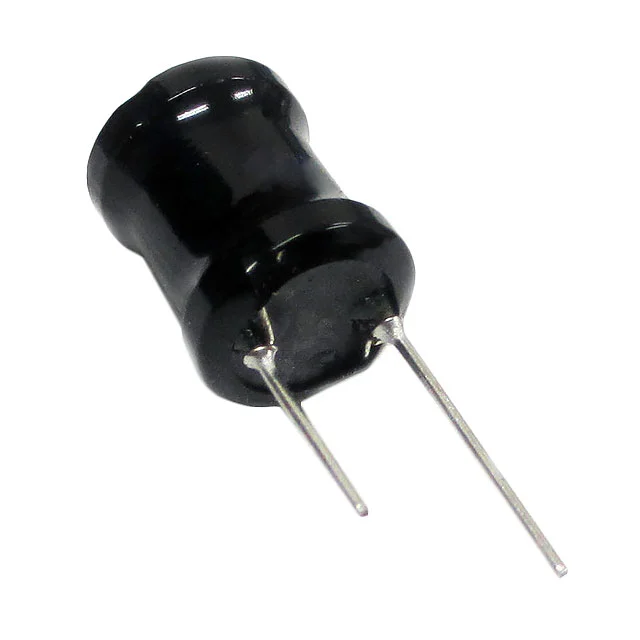

AIUR-16-822K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-16-822K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 8.2 mH |
| Tolerance | ±10% |
| Current Rating | 60 mA |
| DC Resistance (DCR) | 20Ohm Max |
| Saturation Current | 57mA |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.276" Dia (7.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 8.2MH 60MA 20 OHM TH |
| Series | AIUR-16 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.374" (9.50mm) |
