Description

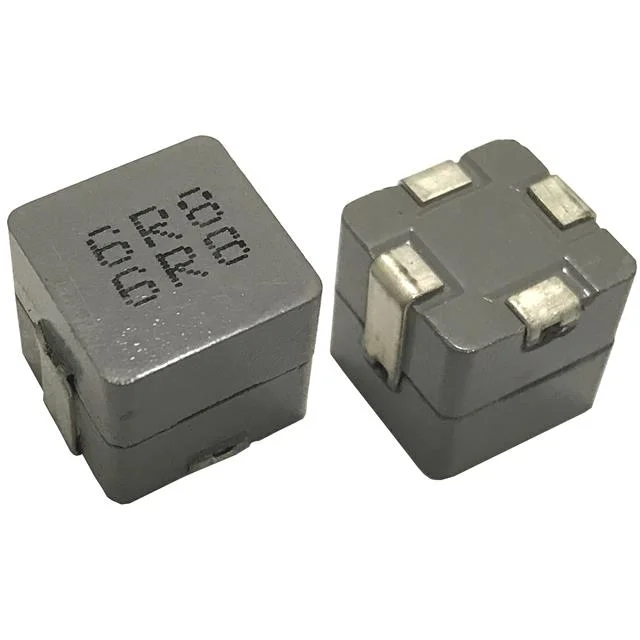

FIXED IND 10UH 9A 20.5 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AMHS00131313100LB1.
AMHS00131313100LB1 has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AMHS00131313100LB1 is rated for 9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AMHS00131313100LB1 lists a DC resistance of 20.5mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AMHS00131313100LB1 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AMHS00131313100LB1 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±15% |
| Current Rating | 9 A |
| DC Resistance (DCR) | 20.5mOhm |
| Saturation Current | 21A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.543" L x 0.543" W (13.80mm x 13.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 10UH 9A 20.5 MOHM SMD |
| Series | AMHS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.512" (13.00mm) |
