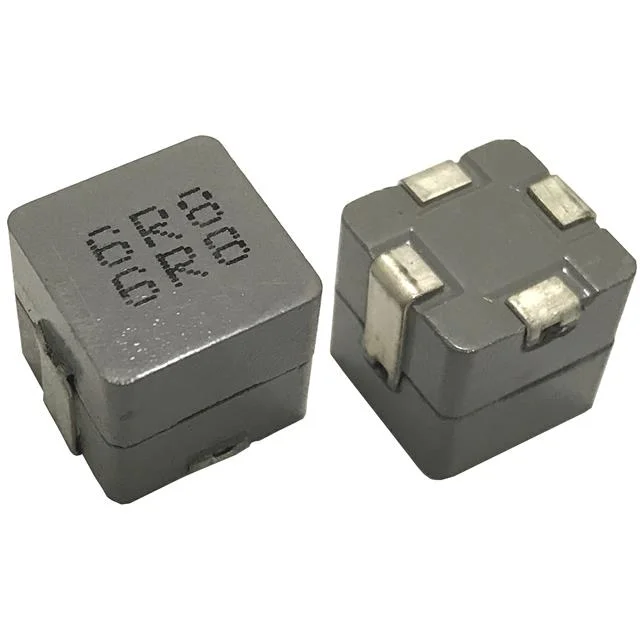

FIXED IND 15UH 7A 33.2 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±15% |
| Current Rating | 7 A |
| DC Resistance (DCR) | 33.2mOhm |
| saturationCurrent | 16A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.543" L x 0.543" W (13.80mm x 13.80mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 15UH 7A 33.2 MOHM SMD |
| Series | AMHS |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Metal |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.512" (13.00mm) |
| features | - |
