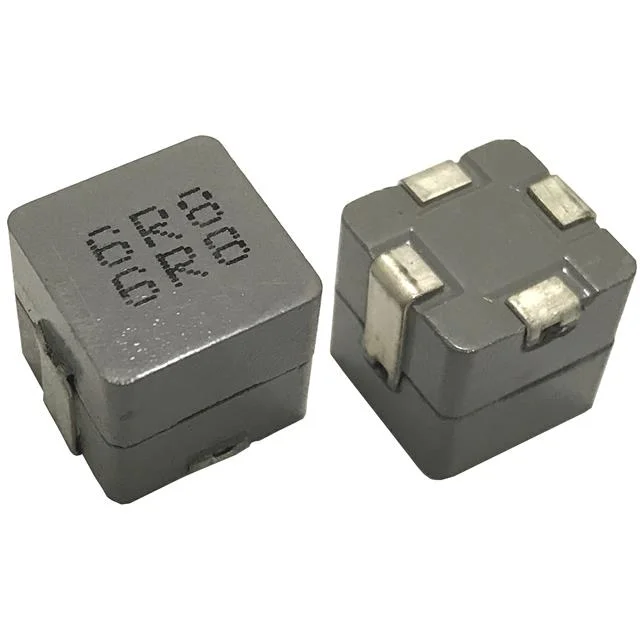

FIXED IND 6.8UH 11.5A 13.5 MOHM
| Inductance | 6.8 µH |
| Tolerance | ±15% |
| Current Rating | 11.5 A |
| DC Resistance (DCR) | 13.5mOhm |
| saturationCurrent | 30A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.543" L x 0.543" W (13.80mm x 13.80mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 6.8UH 11.5A 13.5 MOHM |
| Series | AMHS |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Metal |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.512" (13.00mm) |
| features | - |
