Description

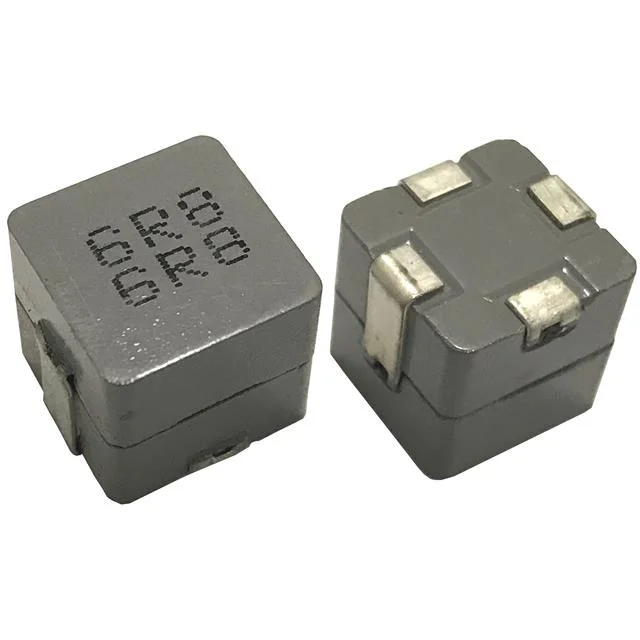

FIXED IND 8.2UH 10A 16 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AMHS001313138R2LA6.
AMHS001313138R2LA6 has an inductance value of 8.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AMHS001313138R2LA6 is rated for 10 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AMHS001313138R2LA6 lists a DC resistance of 16mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AMHS001313138R2LA6 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AMHS001313138R2LA6 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 8.2 µH |
| Tolerance | ±15% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 16mOhm |
| Saturation Current | 25A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.543" L x 0.543" W (13.80mm x 13.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 8.2UH 10A 16 MOHM SMD |
| Series | AMHS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.512" (13.00mm) |
