Description

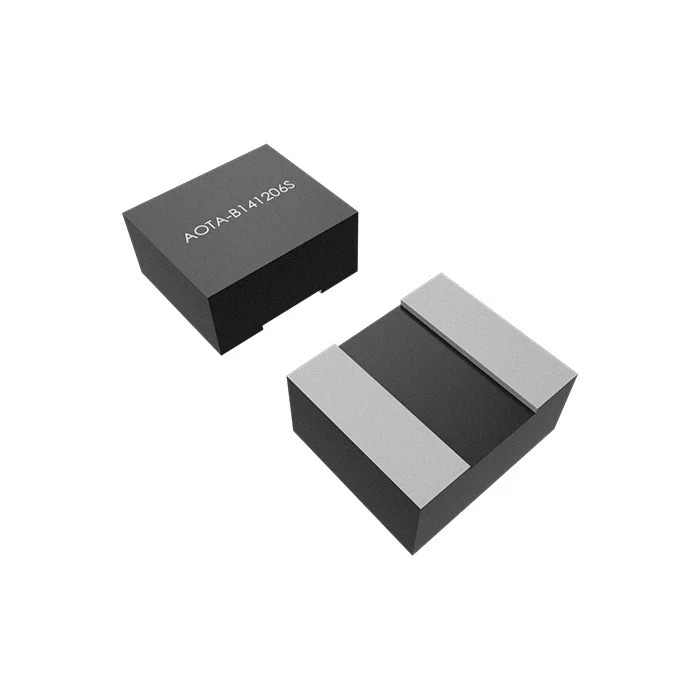

FIXED IND 470NH 2.9A 41 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AOTA-B141206SR47MT.
AOTA-B141206SR47MT has an inductance value of 470 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AOTA-B141206SR47MT is rated for 2.9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AOTA-B141206SR47MT lists a DC resistance of 41mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AOTA-B141206SR47MT uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AOTA-B141206SR47MT to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 2.9 A |
| DC Resistance (DCR) | 41mOhm Max |
| Saturation Current | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0505 |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 470NH 2.9A 41 MOHM SMD |
| Series | AOTA-B141206S |
| Product Status | Active |
| Type / Construction | Molded |
| Shielding | Shielded |
| Self Resonant Frequency | 115MHz |
| Inductance Test Frequency | 1 MHz |
| Supplier Device Package | 0505 (1412 Metric) |
| Height - Seated (Max) | 0.055" L x 0.047" W (1.40mm x 1.20mm) |
| Features | 0.026" (0.65mm) |
