Description

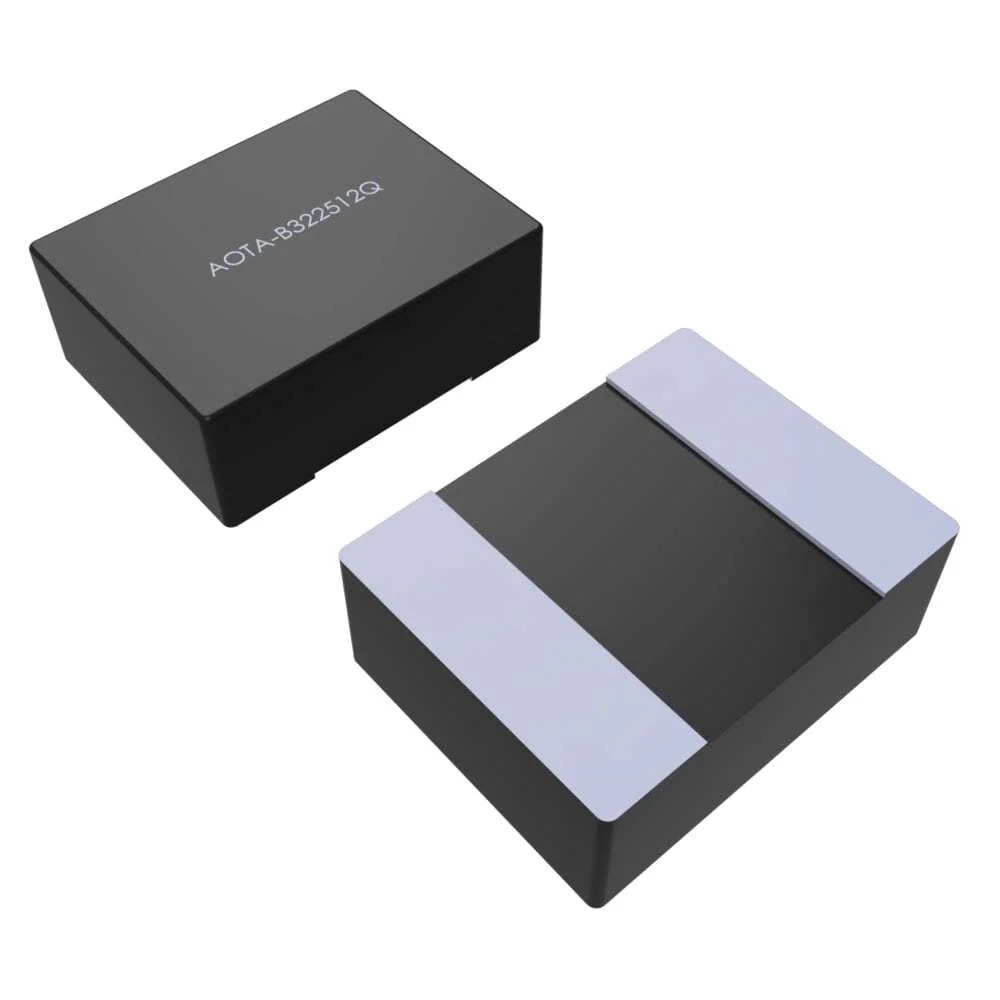

FIXED IND 4.7UH 1.9A 151 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AOTA-B322512Q4R7MT.
AOTA-B322512Q4R7MT has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AOTA-B322512Q4R7MT is rated for 1.9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AOTA-B322512Q4R7MT lists a DC resistance of 151mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AOTA-B322512Q4R7MT uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AOTA-B322512Q4R7MT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 151mOhm Max |
| Saturation Current | 2.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | Abracon |
| Description | FIXED IND 4.7UH 1.9A 151 MOHM |
| Series | AOTA-B322512Q |
| Product Status | Obsolete |
| Type / Construction | Molded |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.047" (1.20mm) |
