Description

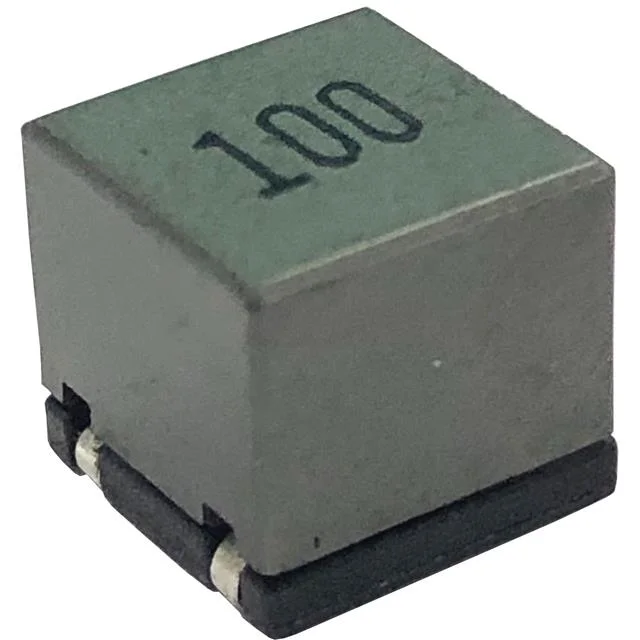

FIXED IND 10UH 4.2A 18 MOHM SMD
Specifications
Inductance
10 µH
Current Rating
4.2 A
DC Resistance (DCR)
18mOhm Max
Dimensions
0.504" L x 0.413" W (12.80mm x 10.50mm)
Product Attributes
Manufacturer Verified
Last verified: 6/18/2026| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 4.2 A |
| DC Resistance (DCR) | 18mOhm Max |
| saturationCurrent | 7.1A |
| Operating Temperature | -50°C ~ 150°C |
| Dimensions | 0.504" L x 0.413" W (12.80mm x 10.50mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 10UH 4.2A 18 MOHM SMD |
| Series | APCK |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.421" (10.70mm) |
| features | - |
