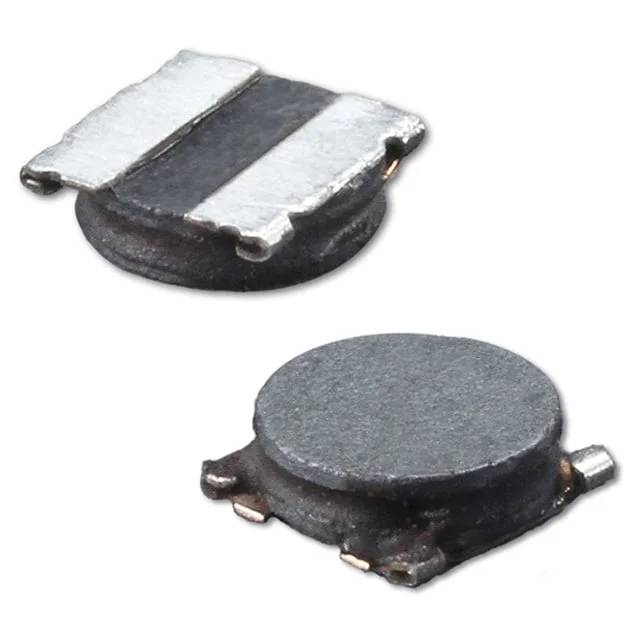

FIXED IND 1UH 2.3A 50 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating | 2.3 A |
| DC Resistance (DCR) | 50mOhm |
| saturationCurrent | 2.3A |
| Operating Temperature | -25°C ~ 120°C |
| Dimensions | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 1UH 2.3A 50 MOHM SMD |
| Series | ASPI-0310FS |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Nickel Zinc Ferrite (NiZn) |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.039" (1.00mm) |
| features | - |
