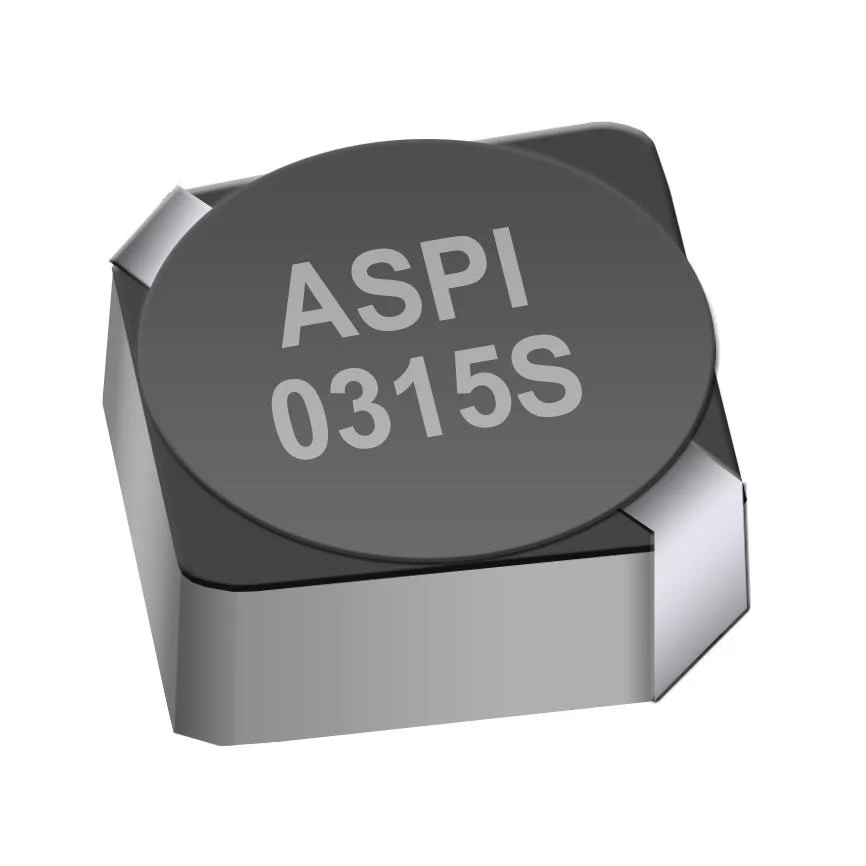

FIXED IND 4.7UH 900MA 105 MOHM
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 105mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.146" L x 0.146" W (3.70mm x 3.70mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 4.7UH 900MA 105 MOHM |
| Series | ASPI-0315S |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.071" (1.80mm) |
| features | - |
