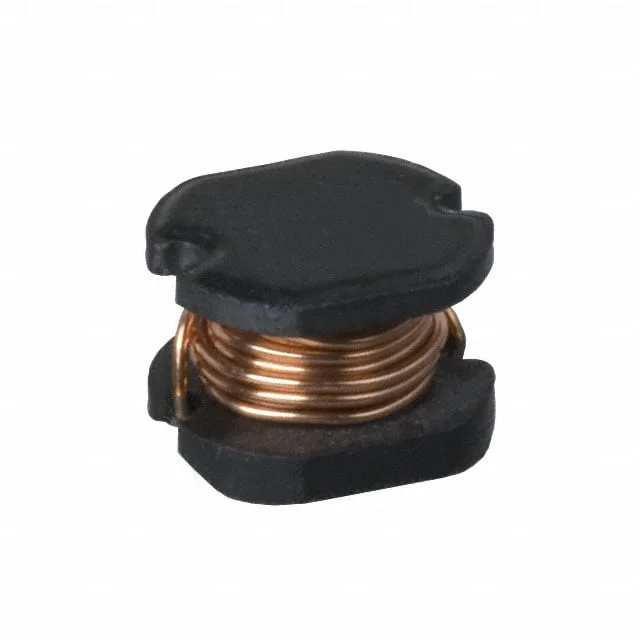

Description
FIXED IND 12UH 970MA 210 MOHM
Specifications
Inductance
12 µH
Current Rating
970 mA
DC Resistance (DCR)
210mOhm Max
Dimensions
0.177" L x 0.157" W (4.50mm x 4.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 12 µH |
| Tolerance | ±10% |
| Current Rating | 970 mA |
| DC Resistance (DCR) | 210mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 12UH 970MA 210 MOHM |
| Series | ASPI-0403 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.138" (3.50mm) |
| features | - |
