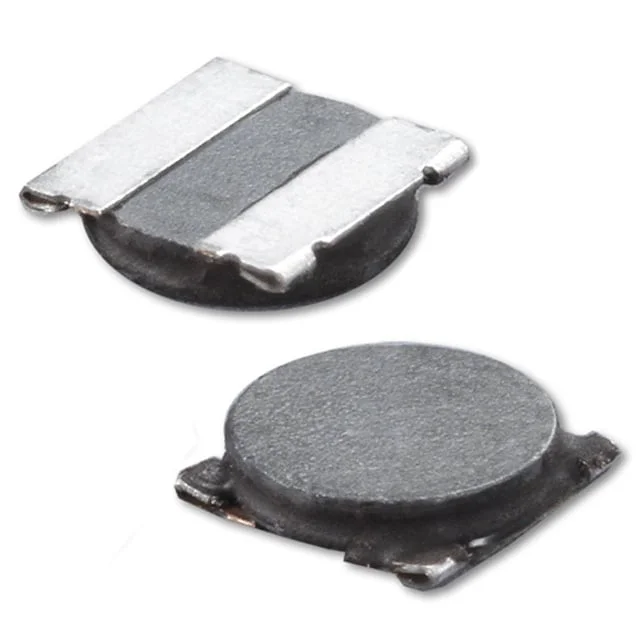

FIXED IND 33UH 280MA 1.54 OHM
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 280 mA |
| DC Resistance (DCR) | 1.54Ohm Max |
| saturationCurrent | 370mA |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 33UH 280MA 1.54 OHM |
| Series | ASPI-0410FS |
| productStatus | Discontinued at DigiKey |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.039" (1.00mm) |
| features | - |
