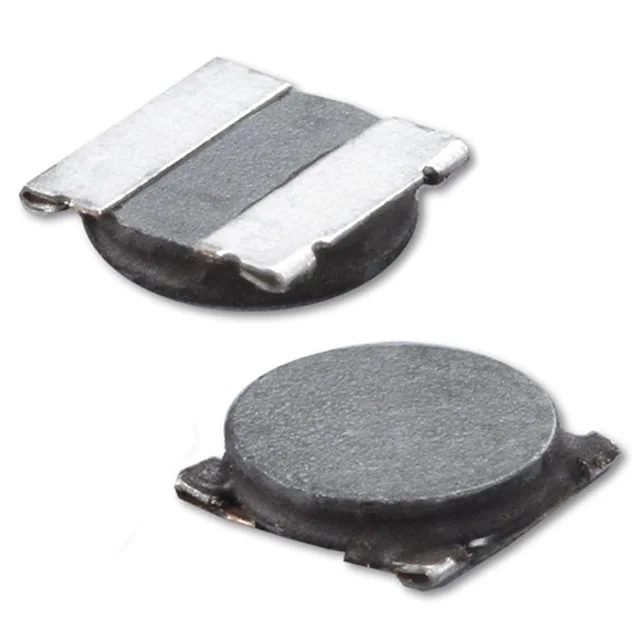

FIXED IND 3.3UH 1.1A 180 MOHM
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 1.1 A |
| DC Resistance (DCR) | 180mOhm Max |
| saturationCurrent | 1.1A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 3.3UH 1.1A 180 MOHM |
| Series | ASPI-0410FS |
| productStatus | Discontinued at DigiKey |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.039" (1.00mm) |
| features | - |
