Description

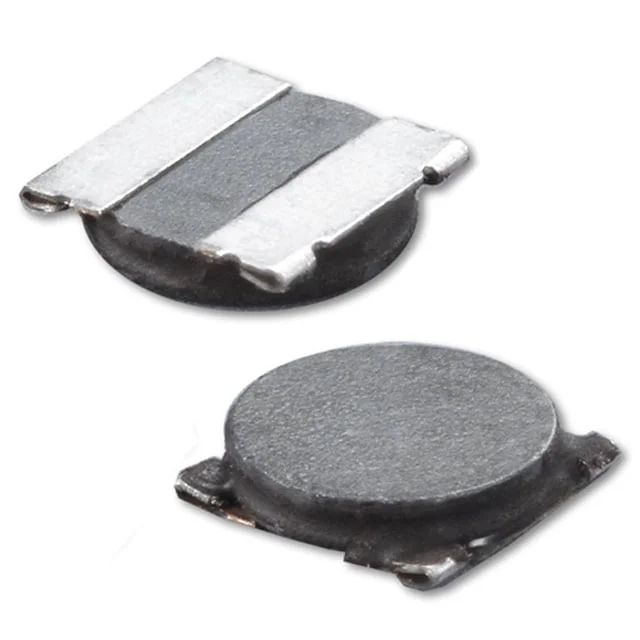

FIXED IND 47UH 240MA 1.81 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-0410FS-470M-T35.
ASPI-0410FS-470M-T35 has an inductance value of 47 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ASPI-0410FS-470M-T35 is rated for 240 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ASPI-0410FS-470M-T35 lists a DC resistance of 1.81Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ASPI-0410FS-470M-T35 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-0410FS-470M-T35 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 240 mA |
| DC Resistance (DCR) | 1.81Ohm Max |
| Saturation Current | 270mA |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 47UH 240MA 1.81 OHM |
| Series | ASPI-0410FS |
| Product Status | Discontinued at DigiKey |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
