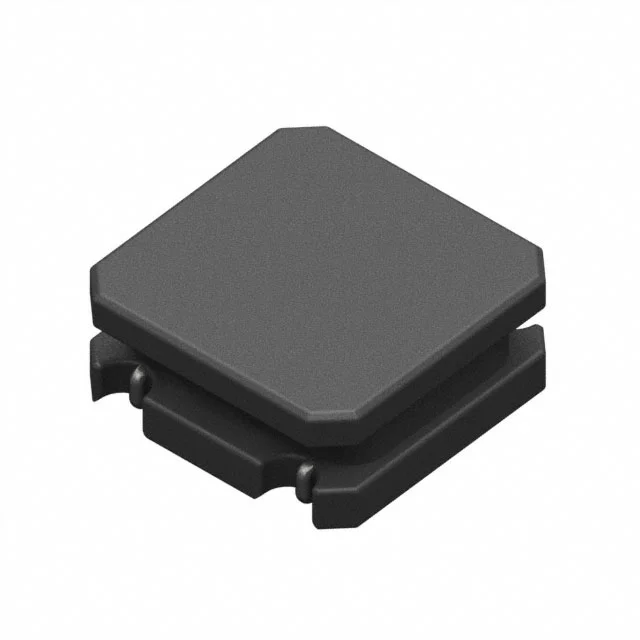

FIXED IND 68UH 350MA 852 MOHM
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 350 mA |
| DC Resistance (DCR) | 852mOhm Max |
| saturationCurrent | 350mA |
| Operating Temperature | -25°C ~ 120°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 68UH 350MA 852 MOHM |
| Series | ASPI-0425 |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.098" (2.50mm) |
| features | - |
