Description

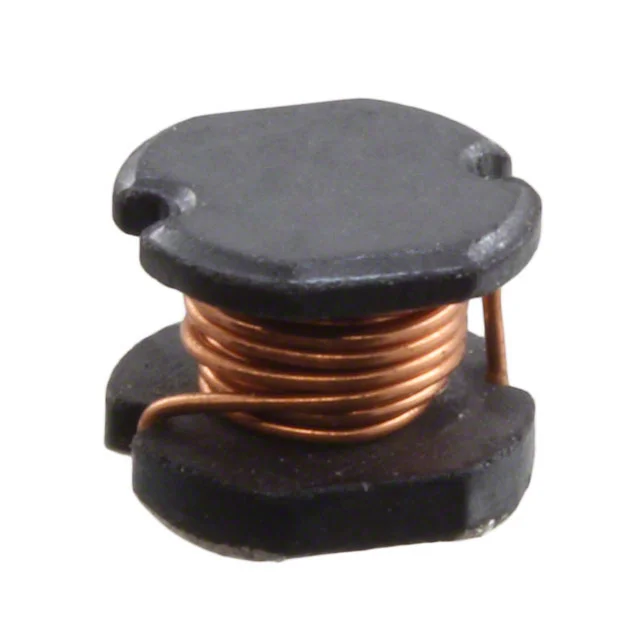

FIXED IND 10UH 1.44A 100 MOHM
Specifications
Inductance
10 µH
Current Rating
1.44 A
DC Resistance (DCR)
100mOhm Max
Dimensions
-
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating | 1.44 A |
| DC Resistance (DCR) | 100mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | - |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 10UH 1.44A 100 MOHM |
| Series | ASPI-0504 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | - |
| supplierDevicePackage | Nonstandard |
| heightMax | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| features | 0.191" (4.85mm) |
