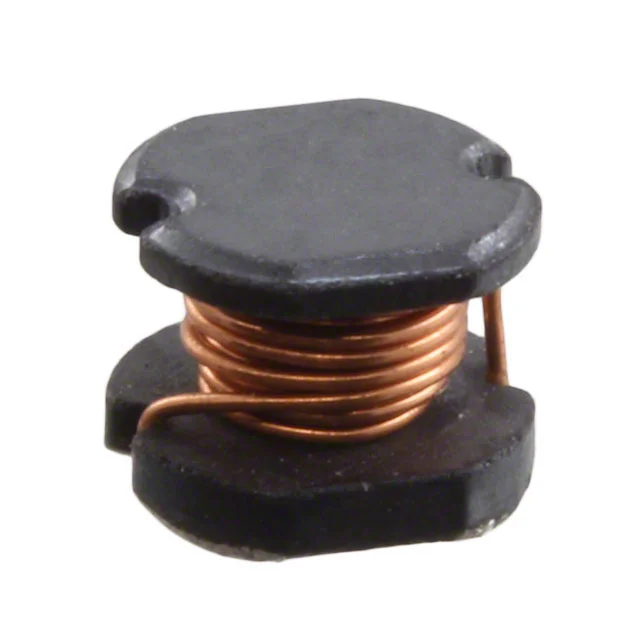

FIXED IND 1MH 150MA 14.4 OHM SMD
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 14.4Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | - |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 1MH 150MA 14.4 OHM SMD |
| Series | ASPI-0504 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | - |
| supplierDevicePackage | Nonstandard |
| heightMax | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| features | 0.177" (4.50mm) |
