Description

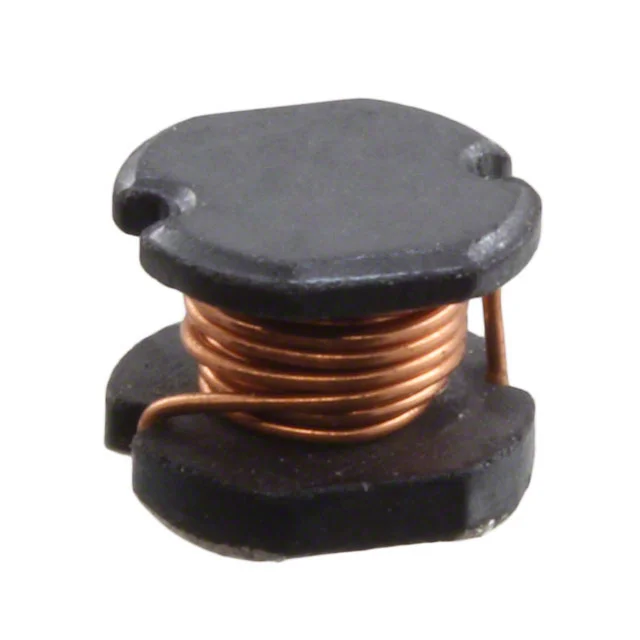

FIXED IND 220UH 350MA 1.57 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-0504-221M-T.
ASPI-0504-221M-T has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ASPI-0504-221M-T is rated for 350 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ASPI-0504-221M-T lists a DC resistance of 1.57Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ASPI-0504-221M-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-0504-221M-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating | 350 mA |
| DC Resistance (DCR) | 1.57Ohm Max |
| Operating Temperature | -40°C ~ 85°C |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 220UH 350MA 1.57 OHM |
| Series | ASPI-0504 |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Nonstandard |
| Height - Seated (Max) | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Features | 0.191" (4.85mm) |
