Description

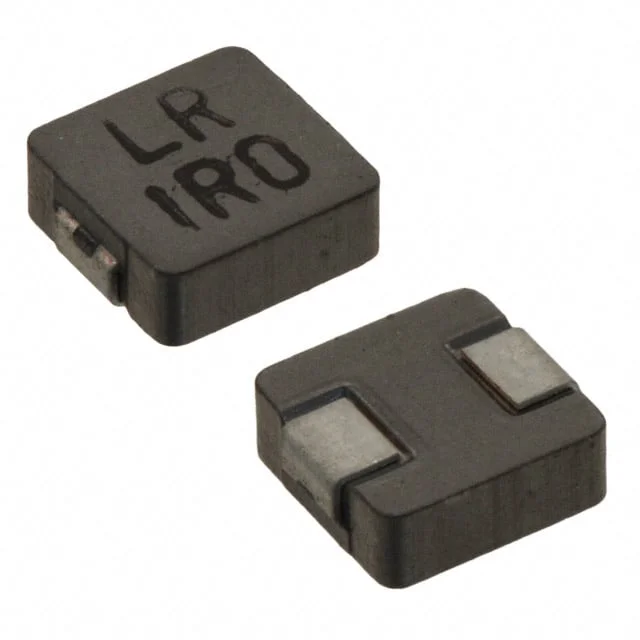

FIXED IND 1UH 7.5A 18.5 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-0520LR-1R0M-T2.
ASPI-0520LR-1R0M-T2 has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ASPI-0520LR-1R0M-T2 is rated for 7.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ASPI-0520LR-1R0M-T2 lists a DC resistance of 18.5mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ASPI-0520LR-1R0M-T2 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-0520LR-1R0M-T2 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 7.5 A |
| DC Resistance (DCR) | 18.5mOhm Max |
| Saturation Current | 8A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.220" L x 0.205" W (5.60mm x 5.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 1UH 7.5A 18.5 MOHM SMD |
| Series | ASPI-0520LR |
| Product Status | Active |
| Type / Construction | Molded |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.083" (2.10mm) |
