Description

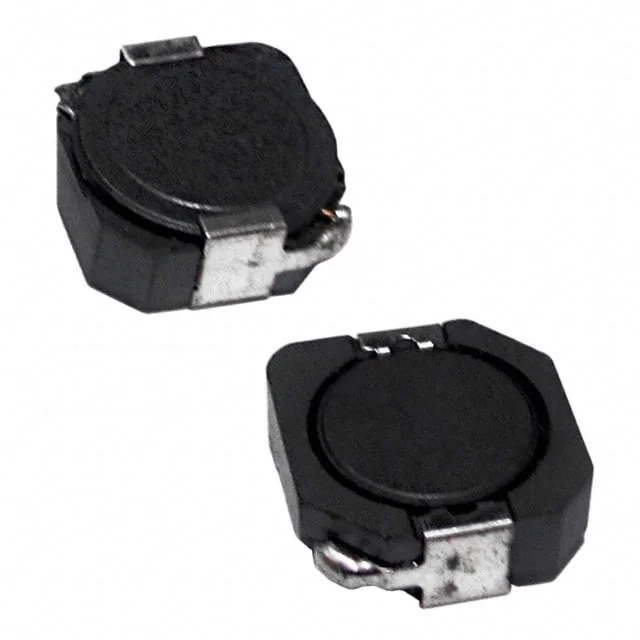

FIXED IND 6UH 2.25A 35 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-0602S-6R0M-T.
ASPI-0602S-6R0M-T has an inductance value of 6 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ASPI-0602S-6R0M-T is rated for 2.25 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ASPI-0602S-6R0M-T lists a DC resistance of 35mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ASPI-0602S-6R0M-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-0602S-6R0M-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6 µH |
| Tolerance | ±20% |
| Current Rating | 2.25 A |
| DC Resistance (DCR) | 35mOhm Max |
| Operating Temperature | -40°C ~ 85°C |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 6UH 2.25A 35 MOHM SMD |
| Series | ASPI-0602S |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 10 kHz |
| Supplier Device Package | Nonstandard |
| Height - Seated (Max) | 0.264" L x 0.264" W (6.70mm x 6.70mm) |
| Features | 0.118" (3.00mm) |
