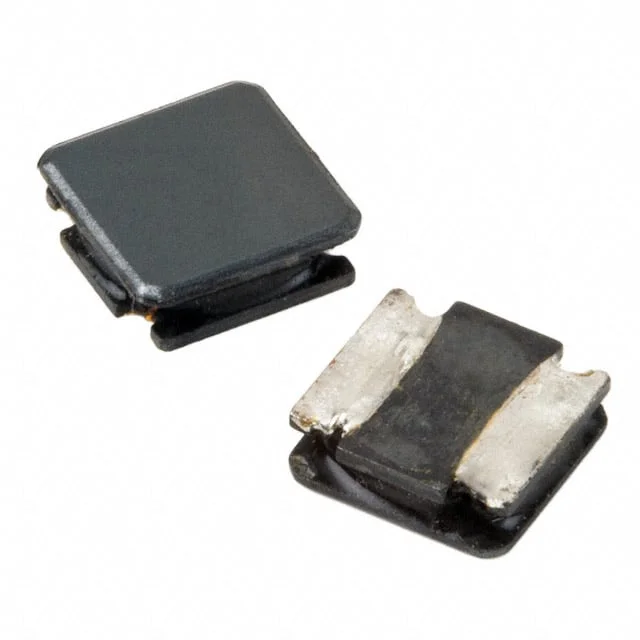

FIXED IND 15UH 1.2A 120 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 120mOhm |
| saturationCurrent | 1.3A |
| Operating Temperature | -25°C ~ 120°C |
| Dimensions | - |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 15UH 1.2A 120 MOHM SMD |
| Series | ASPI-0615FS |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | - |
| supplierDevicePackage | Nonstandard |
| heightMax | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| features | 0.087" (2.20mm) |
