Description

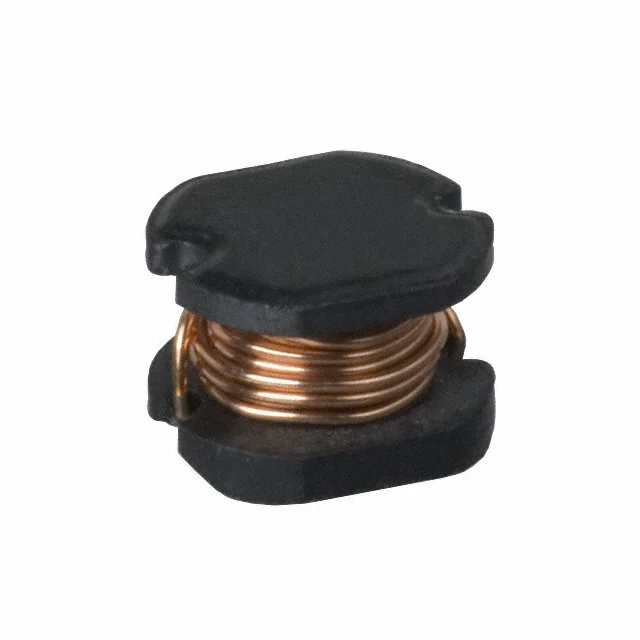

FIXED IND 47UH 1.1A 180 MOHM SMD
Specifications
Inductance
47 µH
Current Rating
1.1 A
DC Resistance (DCR)
180mOhm Max
Dimensions
0.307" L x 0.276" W (7.80mm x 7.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating | 1.1 A |
| DC Resistance (DCR) | 180mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon,WEC |
| Description | FIXED IND 47UH 1.1A 180 MOHM SMD |
| Series | ASPI-0705 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.217" (5.50mm) |
| features | - |
