Description

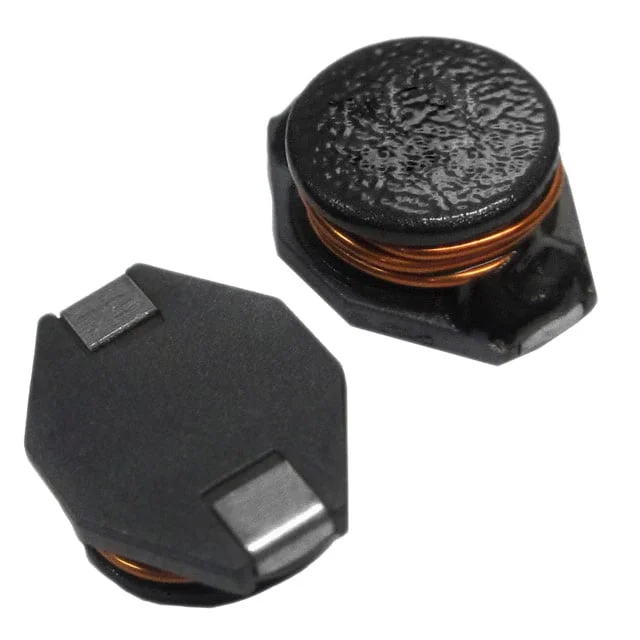

FIXED IND 330UH 600MA 1.02 OHM
Specifications
Inductance
330 µH
Current Rating
600 mA
DC Resistance (DCR)
1.02Ohm Max
Dimensions
0.510" L x 0.370" W (12.95mm x 9.40mm)
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 1.02Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 330UH 600MA 1.02 OHM |
| Series | ASPI-0804T |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.205" (5.21mm) |
| features | - |
