Description

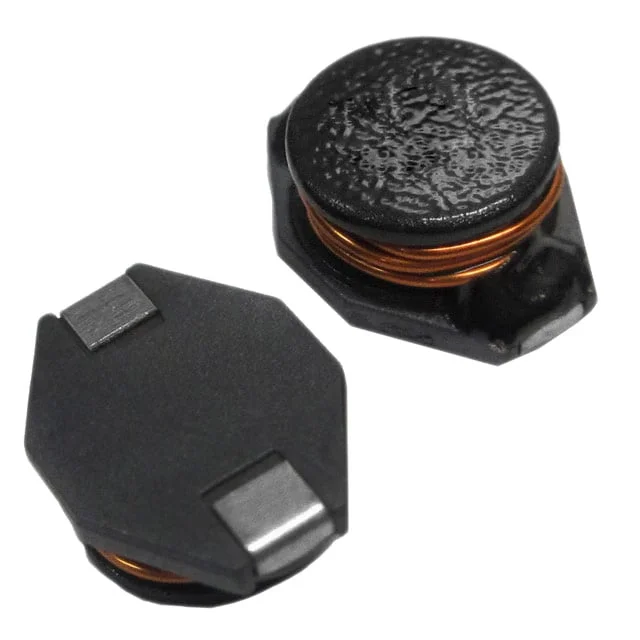

FIXED IND 470UH 500MA 1.27 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-0804T-471M-T.
ASPI-0804T-471M-T has an inductance value of 470 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ASPI-0804T-471M-T is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ASPI-0804T-471M-T lists a DC resistance of 1.27Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ASPI-0804T-471M-T uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-0804T-471M-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 1.27Ohm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 470UH 500MA 1.27 OHM |
| Series | ASPI-0804T |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.205" (5.21mm) |
