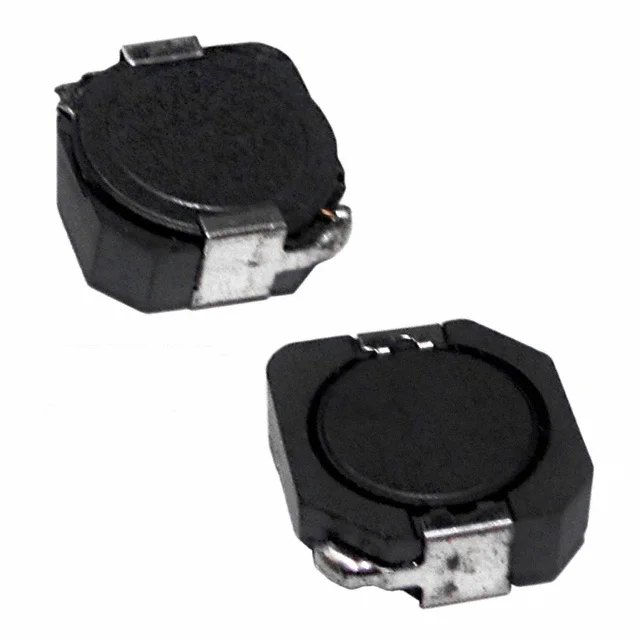

FIXED IND 15UH 3.6A 50 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±30% |
| Current Rating | 3.6 A |
| DC Resistance (DCR) | 50mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.409" L x 0.406" W (10.40mm x 10.30mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 15UH 3.6A 50 MOHM SMD |
| Series | ASPI-104S |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.157" (4.00mm) |
| features | - |
