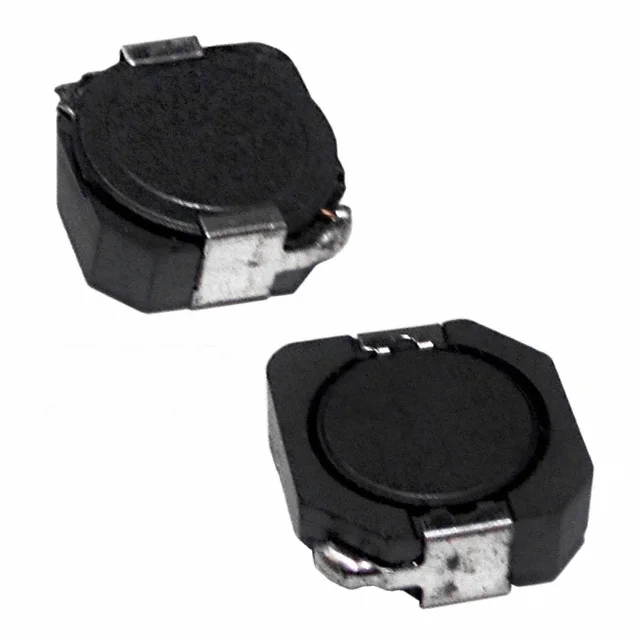

FIXED IND 180UH 700MA 663 MOHM
| Inductance | 180 µH |
| Tolerance | ±20% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 663mOhm Max |
| saturationCurrent | 1.05A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | - |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 180UH 700MA 663 MOHM |
| Series | ASPI-104S |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | - |
| supplierDevicePackage | Nonstandard |
| heightMax | 0.398" L x 0.394" W (10.10mm x 10.00mm) |
| features | 0.157" (4.00mm) |
