Description

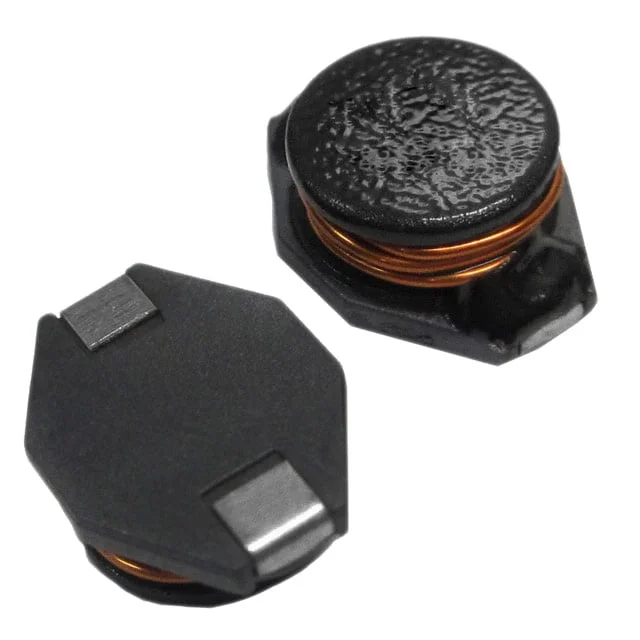

FIXED IND 330UH 1A 560 MOHM SMD
Specifications
Inductance
330 µH
Current Rating
1 A
DC Resistance (DCR)
560mOhm Max
Dimensions
0.730" L x 0.600" W (18.54mm x 15.24mm)
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 560mOhm Max |
| saturationCurrent | 1.9A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 330UH 1A 560 MOHM SMD |
| Series | ASPI-1306T |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 4MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.280" (7.11mm) |
| features | - |
