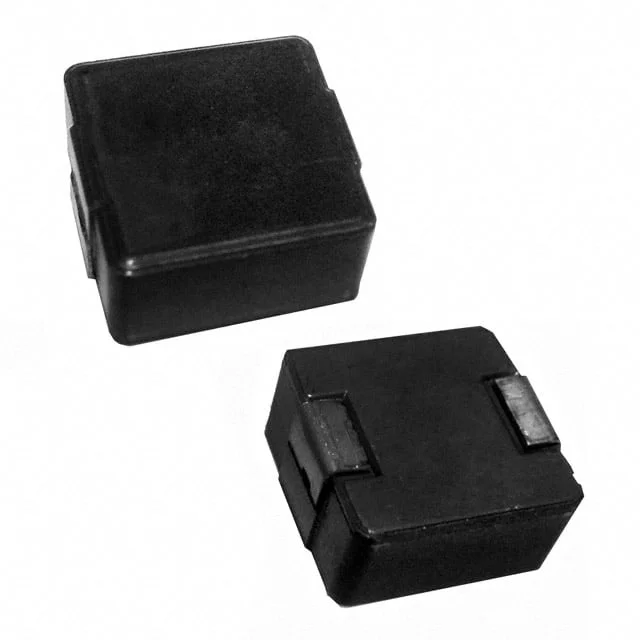

FIXED IND 4.7UH 13.5A 11.2 MOHM
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 13.5 A |
| DC Resistance (DCR) | 11.2mOhm Max |
| saturationCurrent | 25A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.551" L x 0.508" W (14.00mm x 12.90mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 4.7UH 13.5A 11.2 MOHM |
| Series | ASPI-1367 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 200 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.264" (6.70mm) |
| features | - |
