Description

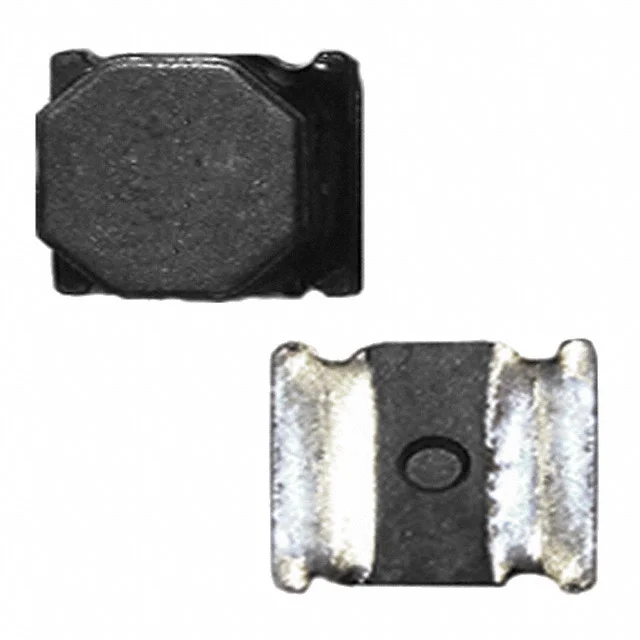

FIXED IND 1UH 1.9A 70 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-2510-1R0N-T2.
ASPI-2510-1R0N-T2 has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ASPI-2510-1R0N-T2 is rated for 1.9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ASPI-2510-1R0N-T2 lists a DC resistance of 70mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ASPI-2510-1R0N-T2 uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-2510-1R0N-T2 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 70mOhm |
| Saturation Current | 1.75A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 2510 |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 1UH 1.9A 70 MOHM SMD |
| Series | ASPI-2510 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Features | 0.039" (1.00mm) |
