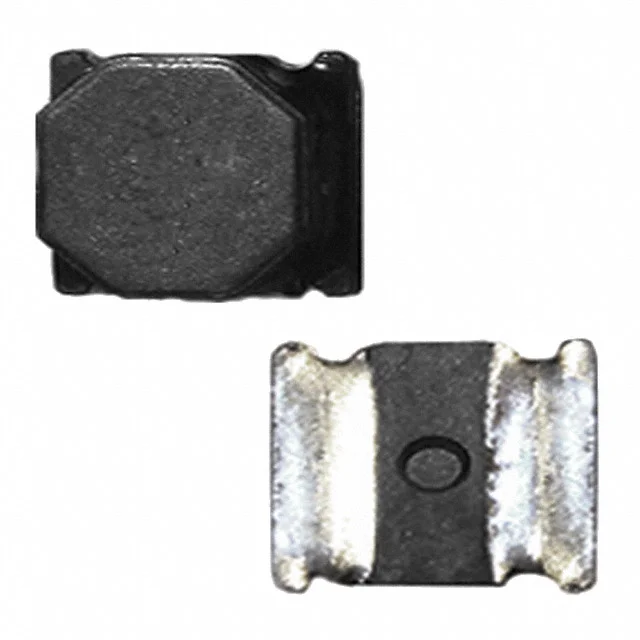

FIXED IND 3.3UH 980MA 227 MOHM
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 980 mA |
| DC Resistance (DCR) | 227mOhm |
| saturationCurrent | 1.25A |
| Operating Temperature | -25°C ~ 120°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 3.3UH 980MA 227 MOHM |
| Series | ASPI-2512 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.047" (1.20mm) |
| features | - |
