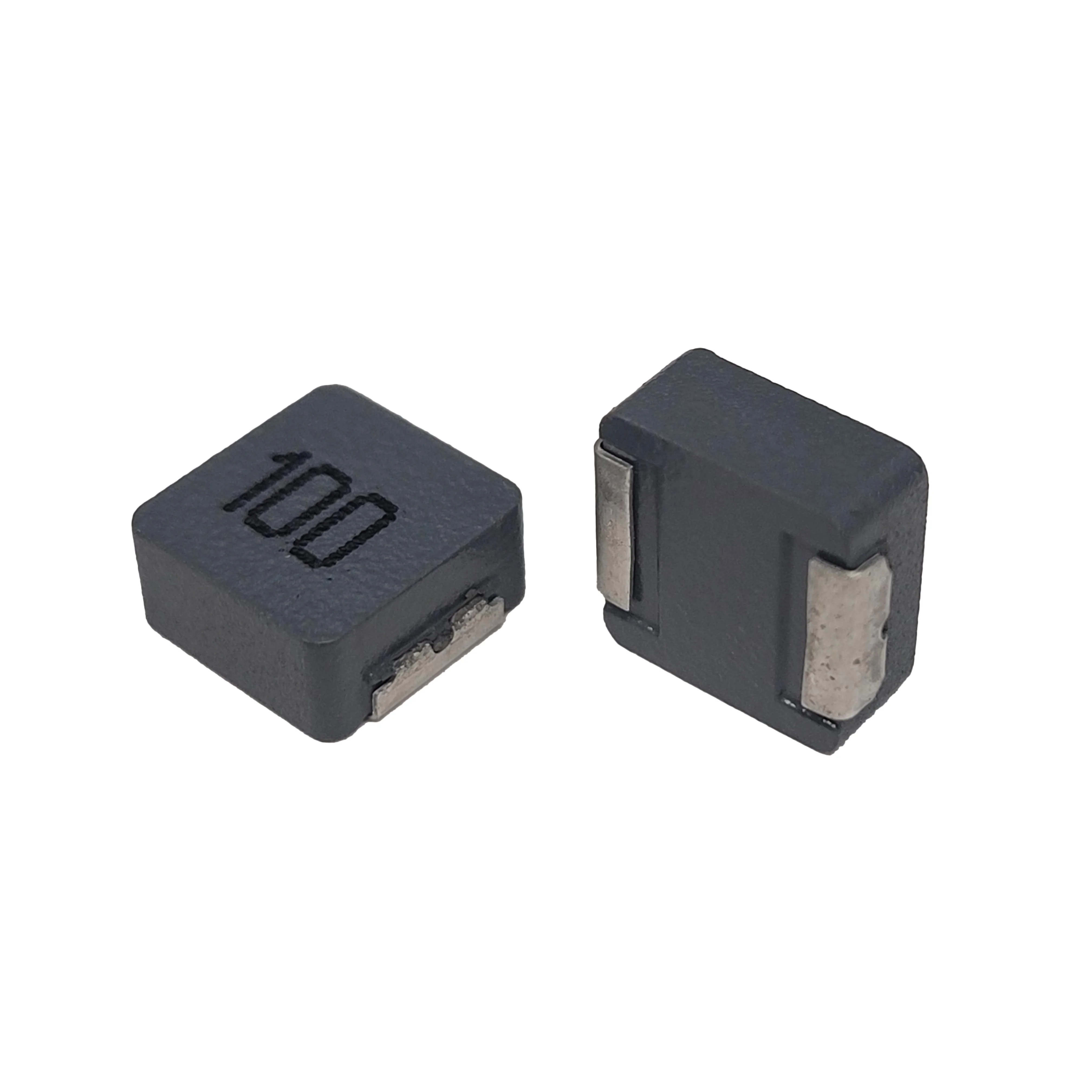

FIXED IND 3.3UH 9.2A 17.7 MOHM
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 9.2 A |
| DC Resistance (DCR) | 17.7mOhm Max |
| saturationCurrent | 20A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | - |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 3.3UH 9.2A 17.7 MOHM |
| Series | ASPI-8040HS |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | - |
| supplierDevicePackage | Nonstandard |
| heightMax | 0.339" L x 0.323" W (8.60mm x 8.20mm) |
| features | 0.157" (4.00mm) |
