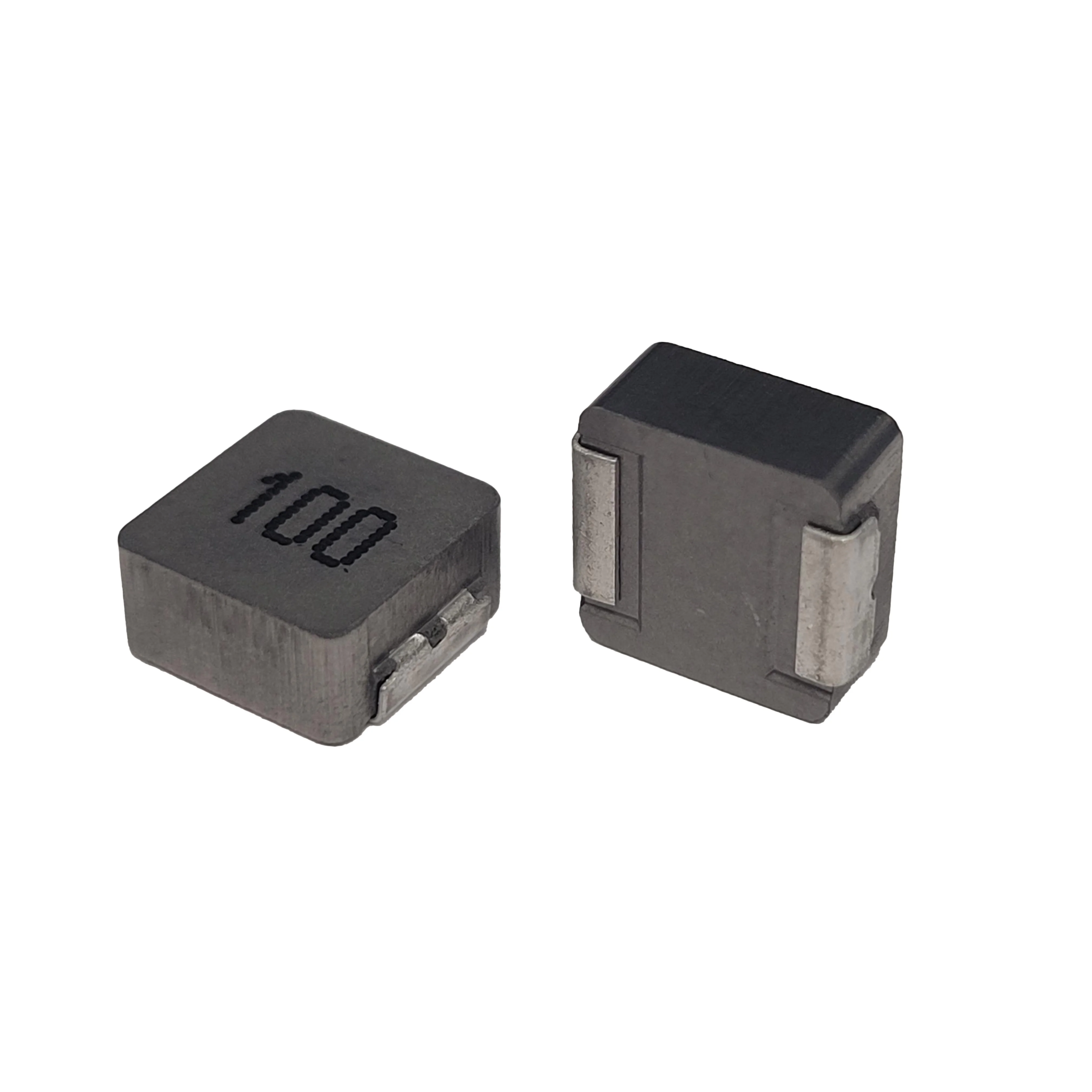

FIXED IND 2.2UH 14.5A 9.41 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating | 14.5 A |
| DC Resistance (DCR) | 9.41mOhm Max |
| saturationCurrent | 10.2A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.339" L x 0.323" W (8.60mm x 8.20mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 2.2UH 14.5A 9.41 MOHM |
| Series | ASPI-8040LR |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.157" (4.00mm) |
| features | - |
