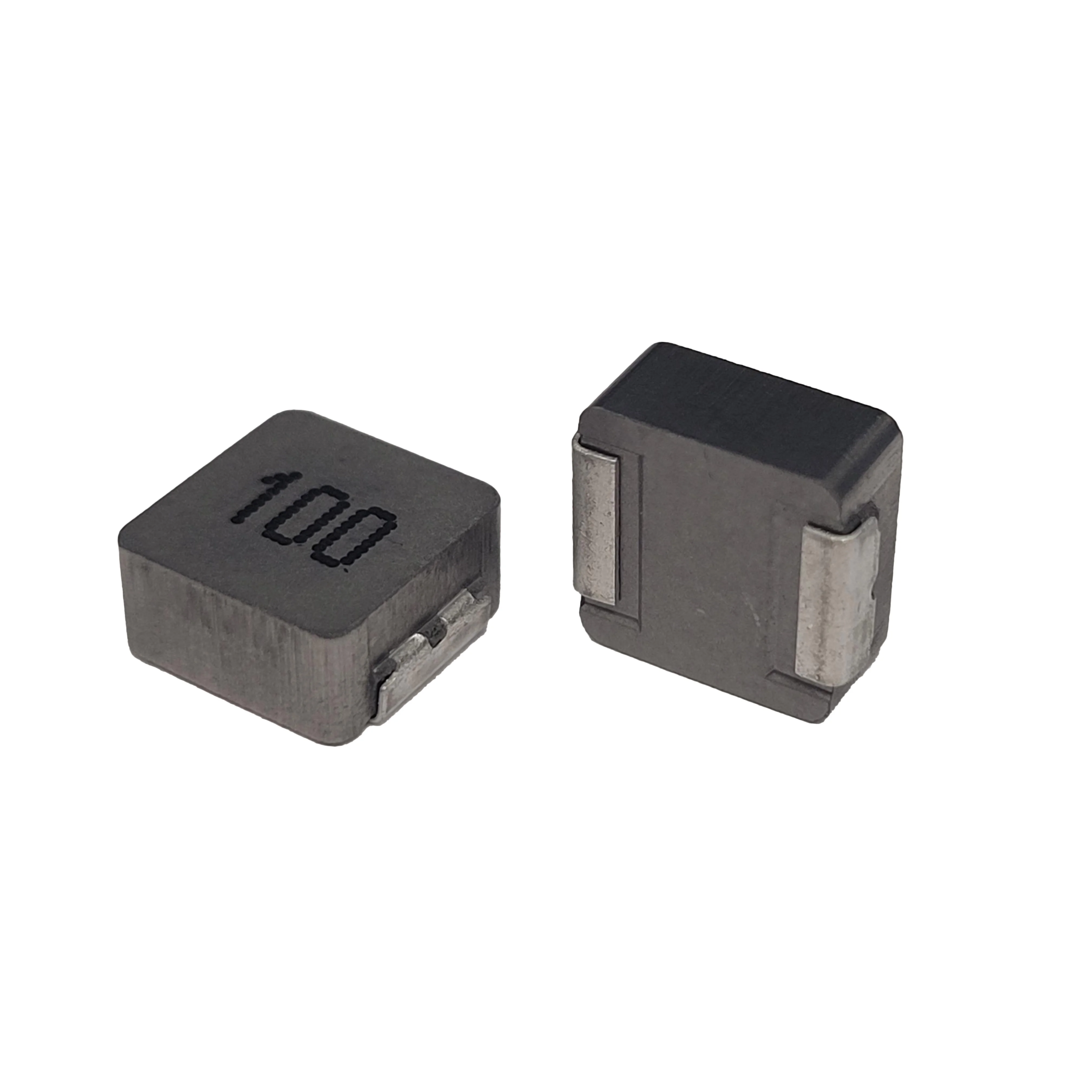

FIXED IND 330NH 27.5A 2.15 MOHM
| Inductance | 330 nH |
| Tolerance | ±30% |
| Current Rating | 27.5 A |
| DC Resistance (DCR) | 2.15mOhm Max |
| saturationCurrent | 16A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.339" L x 0.323" W (8.60mm x 8.20mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 330NH 27.5A 2.15 MOHM |
| Series | ASPI-8040LR |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.157" (4.00mm) |
| features | - |
