Description

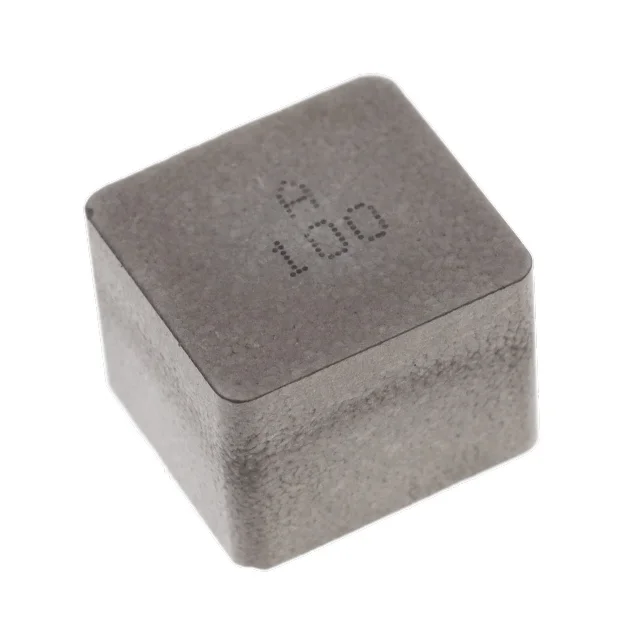

FIXED IND 6.8UH 18.5A 8.9 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-F1010-6R8M-T.
ASPI-F1010-6R8M-T has an inductance value of 6.8 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ASPI-F1010-6R8M-T is rated for 18.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ASPI-F1010-6R8M-T lists a DC resistance of 8.9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ASPI-F1010-6R8M-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-F1010-6R8M-T to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 18.5 A |
| DC Resistance (DCR) | 8.9mOhm Max |
| Saturation Current | 18.5A |
| Operating Temperature | -40°C ~ 125°C |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 6.8UH 18.5A 8.9 MOHM |
| Series | ASPI-F1010 |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Alloy Powder |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Supplier Device Package | Nonstandard |
| Height - Seated (Max) | 0.469" L x 0.433" W (11.90mm x 11.00mm) |
| Features | 0.394" (10.00mm) |
