Description

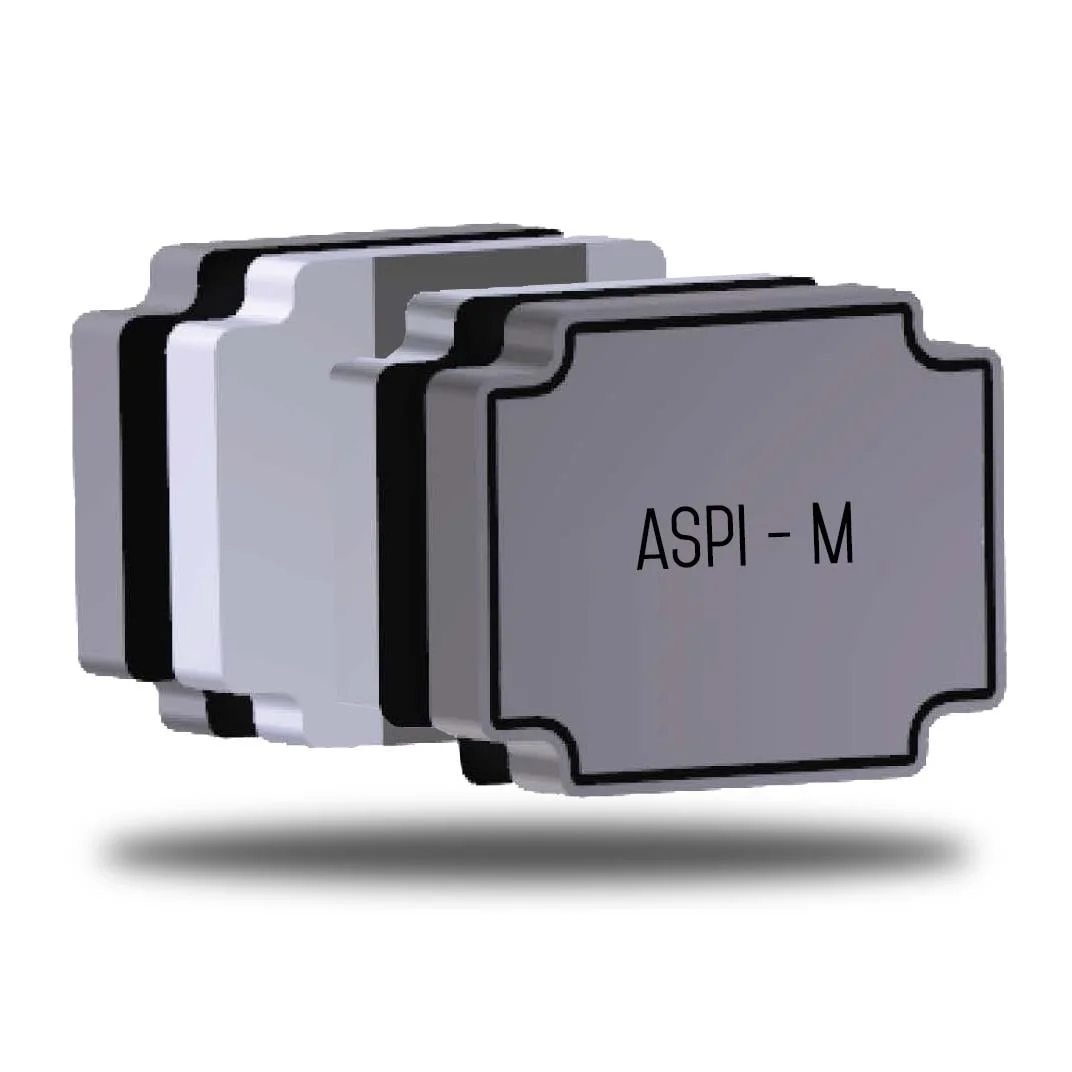

FIXED IND 470NH SURFACE MOUNT
Specifications
Inductance
470 nH
Dimensions
0.098" L x 0.079" W (2.50mm x 2.00mm)
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-M2512-R47M-T.
Inductance
470 nH
ASPI-M2512-R47M-T has an inductance value of 470 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
Nonstandard, 2 Lead
ASPI-M2512-R47M-T uses a package or case of Nonstandard, 2 Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-M2512-R47M-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 nH |
| Tolerance | ±20% |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | Nonstandard, 2 Lead |
| Package / Case | Nonstandard, 2 Lead |
| Supplier | Abracon |
| Description | FIXED IND 470NH SURFACE MOUNT |
| Series | ASPI-M |
| Product Status | Obsolete |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.047" (1.20mm) |
